Name:

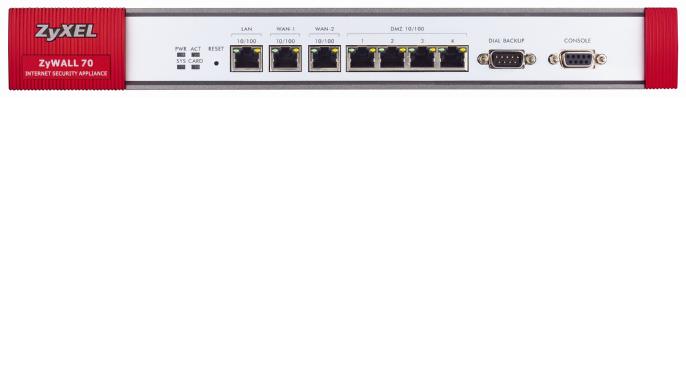

ZyWALL 70 UTM
Item#:
ZW70 UTM
- Small and Medium Businesses looking for a cost-effective security appliance and VPN concentrator
- Businesses that have two Internet connections and require non-stop Internet services
- Businesses that are concerned about ease-of-use and remote management through a secure connection
- Organizations with up to 200 users
- Businesses that need a dynamically updated database to provide accurate web content filtering services (powered by Bluecoat)
-Furthermore, the ZyWALL 70 can also increase network efficiency, reliability and perform bandwith load balancing.
Specification
| |
Virtual Private Network
- 100 simultaneous IPSec VPN Connections
- Max. 50Mbps 3DES/AES VPN performance
- Manual Key, IKE and PKI(X.509)
- IPSec NAT Traversal
Firewall Security
- Transparent Firewall (bridge mode)
- Stateful Packet Inspection
- DoS and DDoS Protection
- Real-time Attack Alert and Logs
Traffic Management
- Dual WAN auto fail-over, fall-back, policy router
- Dual WAN Load Balancing
- Policy-based Traffic Shaping
- Priority-bandwidth Utilization
- Guaranteed and Maximum Bandwidth Allocation
Content Filtering
- Java/Active X/Cookie/Proxy Blocking
- URL and Keyword Blocking
- Web content filtering (Bluecoat)
Network
- DHCP client/relay/server
- PPPoE
- PPTP
System Management
- WebGUI (HTTP and HTTPS)
- Command Line Interface (Console, Telnet, SSH)
- Firmware Upgrade (WebGUI, TFTP/FTP/SFTP)
- Vantage Centralized Network Management
Wireless
- IEEE 802.11b/11g compliant
- 128-bits WEP Encryption
- IEEE 802.1x Port-Based Authentication with RADIUS Client
- IPSec VPN over WLAN
- WPA
- WLAN Card support: ZyXEL Wireless clients, B-100, B-101, B-120, G-100, G-110
Hardware Specification
- Power: 100~240 VAC
- LAN: 10/100 Mbps Ethernet
- WAN1 & WAN2: 10/100 Mbps Ethernet
- 4-port DMZ: 10/100 Mbps Ethernet
- Reset Button
- RS-232 DB9F: Console
- RS-232 DB9M: Dial Backup
- Extension Card Slot for Wireless ready & optional service*
Physical Specification
- Dimensions: 355(W) x200(D) x55 (H) mm
- Weight: 2600g
Operating Environment
- Operating Temperature: 5~45 °C
- Operating Humidity: 20~95% (non-condensing)
Certification
- EMC: FCC Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B
- Safety: CSA International, CE EN60950-1
MTBF (Bellcore model)
For extra security ZyWALL 70 is capable of:
- stateful packet inspection - protects end-users against DoS and DDoS, and provides continuous real-time attack alert and logs.
- content filtering - blocks Java and Active X embedded websites, URL and keyword blocking.
- WebGUI Management (HTTP and HTTPS)
- Telnet - console command line interface, SSH
- Vantage Centralized Network Management (CNM) software for better and easy firewall management.
| |
)
